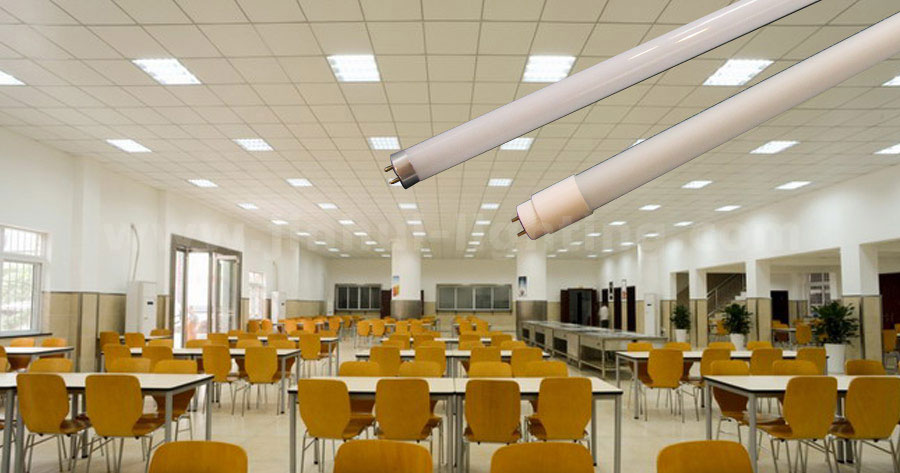

T5, T8 & T10 Fluorescent Tube
| Model: T5 Standard Fluorescent Tube |
|
|
|
Bulb Type: T5
Base: G5
Color Temperature:
6500K,4200K,2900K, and Color
Watt: 4W/6W/8W/13W/14W/21W/28W/35W
|
| |
|
Type |
A
Max(mm) |
B
Max(mm) |
B
Max(mm) |
C
Max(mm) |
φ
Max(mm) |
Measurement of
Carton(cm) |
Pcs |
G.W.
(kg) |
N.W.
(kg) |
|
4W |
135.9 |
143.0 |
140.6 |
150.1 |
16 |
47.5×17.5×39.5 |
500 |
12 |
10 |
|
6W |
212.1 |
219.2 |
216.8 |
226.3 |
16 |
47.5×24.5×39.5 |
500 |
17 |
14.5 |
|
8W |
288.3 |
295.4 |
293.0 |
302.5 |
16 |
47.5×32×39.5 |
500 |
21 |
17.5 |
|
13W |
516.9 |
524.0 |
521.6 |
521.5 |
16 |
55×21×38 |
500 |
12 |
10 |
|
14W |
549.0 |
553.7 |
556.1 |
563.2 |
16 |
58×23×18 |
60 |
5 |
4.7 |
|
21W |
849.0 |
853.7 |
856.1 |
863.2 |
16 |
90×23×18 |
60 |
8 |
7.5 |
|
28W |
1149.0 |
1153.7 |
1156.1 |
1163.2 |
16 |
120×23×18 |
60 |
10.5 |
9.5 |
|
35W |
1149.0 |
1240.1 |
1456.2 |
1463.2 |
16 |
150×23×18 |
60 |
13.5 |
12 |
|
Type |
Watt
(W) |
Current
(A) |
Lamp Voltage |
Luninous
(Lm) |
Life Span
(h) |
Socket |
Peak
Load |
|
Min(V) |
Rating |
Max(V) |
|
4W/WW |
4 |
0.17 |
24 |
28 |
32 |
180 |
5000 |
G5 |
- |
|
6W/WW |
6 |
0.16 |
36 |
42 |
48 |
288 |
5000 |
G5 |
- |
|
8W/WW |
8 |
0.145 |
48 |
56 |
64 |
400 |
5000 |
G5 |
- |
|
13W/WW |
13 |
0.165 |
85 |
95 |
105 |
754 |
5000 |
G5 |
- |
|
14W/WW |
14 |
0.17 |
72 |
82 |
92 |
1050 |
8000 |
G5 |
230V |
|
21W/WW |
21 |
0.17 |
113 |
123 |
133 |
1800 |
8000 |
G5 |
350V |
|
28W/WW |
28 |
0.17 |
150 |
167 |
184 |
2500 |
10000 |
G5 |
375V |
|
35W/WW |
35 |
0.17 |
189 |
209 |
229 |
3250 |
10000 |
G5 |
450V |
| Model: T8 Standard Fluorescent Tube |
|
|
|
Bulb Type: T8
Base: G13
Color Temperature:
6500K,4200K,2900K, and Color
Watt: 10W/15W/18W/30W/36W/58W
|
|
|
|
Type |
A
Max(mm) |
B
Max(mm) |
B
Max(mm) |
C
Max(mm) |
φ
Max(mm) |
Measurement of
Carton(cm) |
Pcs |
G.W.
(kg) |
N.W.
(kg) |
|
10W |
331.3 |
338.4 |
335.8 |
345.5 |
26 |
55×36×29 |
200 |
13 |
11 |
|
15W |
437.4 |
444.5 |
442.0 |
451.6 |
26 |
46.5×28.5×29 |
100 |
8.5 |
7 |
|
18W |
589.8 |
596.9 |
594.5 |
604.0 |
26 |
62×28.5×29 |
100 |
10 |
8.5 |
|
30W |
894.6 |
901.7 |
899.3 |
908.8 |
26 |
93×15×15 |
25 |
6 |
4.5 |
|
36W |
1199.4 |
1026.5 |
1024.1 |
1213.6 |
26 |
123×15×15 |
25 |
8 |
6 |
|
Type |
Watt
(W) |
Current
(A) |
Lamp Voltage |
Luninous
(Lm) |
Life Span
(h) |
Socket |
|
Min(V) |
Rating |
Max(V) |
|
10W/CW |
10 |
0.22 |
44 |
52 |
60 |
310 |
7000 |
G13 |
|
15W/CW |
15 |
0.33 |
52 |
60 |
68 |
610 |
7000 |
G13 |
|
18W/CW |
18 |
0.37 |
38 |
77 |
87 |
1110 |
7000 |
G13 |
|
30W/CW |
30 |
0.405 |
71 |
81 |
91 |
2025 |
8000 |
G13 |
|
36W/CW |
36 |
0.42 |
93 |
103 |
113 |
2650 |
8000 |
G13 |
| Model: T10 Standard Fluorescent Tube |
|
|
|
Bulb Type: T10
Base: G13
Color Temperature:
6500K
Watt: 20W/30W/40W
|
|
|
|
Type |
A
Max(mm) |
B
Max(mm) |
B
Max(mm) |
C
Max(mm) |
φ
Max(mm) |
Measurement of
Carton(cm) |
Pcs |
G.W.
(kg) |
N.W.
(kg) |
|
20W |
589.8 |
596.9 |
594.5 |
604.0 |
34 |
64×18×18 |
25 |
5.2 |
4.1 |
|
30W |
894.6 |
901.7 |
899.3 |
908.8 |
34 |
94×18×18 |
25 |
7.7 |
6.2 |
|
40W |
1199.4 |
1206.5 |
1024.1 |
1213.6 |
34 |
124×18×18 |
25 |
10 |
8.0 |
|
Type |
Watt
(W) |
Current
(A) |
Lamp Voltage |
Luninous
(Lm) |
Life Span
(h) |
Socket |
|
Min(V) |
Rating |
Max(V) |
|
20W/DL |
20 |
0.37 |
52 |
58 |
64 |
880 |
7000 |
G13 |
|
30W/DL |
30 |
0.40 |
74 |
84 |
94 |
1580 |
8000 |
G13 |
|
40W/DL |
40 |
0.42 |
99 |
106 |
116 |
2300 |
8000 |
G13 |
|
|
|
|
|
|
|
|
