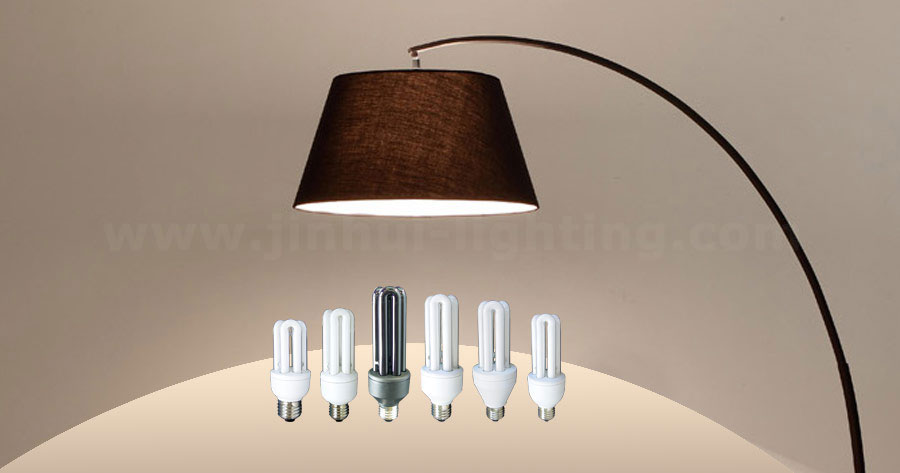

3U Compact Fluorescent Bulb


The 3U compact fluorescent bulb consists of a high performance electronic ballast and a 3U shaped trichromatic fluorescent lamp. The whole unit is compact and simple in construction and highly effective in light emitting, with soft light, excellent chromaticness and low heat-emission. Moreover, it can be instantly started even at a comparatively low temperature or voltage.


Model: YB-9
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K or Black
Base Type:
E26, B22, E27
Tube Color :
Purple & White



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-9 11 550 53 136 60.5*29.5*34.5cm
YB-9 13 650 53 146 60.5*29.5*36.5cm
YB-9 15 750 53 155 60.5*29.5*37.5cm
YB-9 18 900 53 161 60.5*29.5*39.5cm
YB-9 20 1000 53 166 60.5*29.5*40.5cm
YB-9 22 1100 53 171 60.5*29.5*41.5cm
YB-9 24 1200 53 176 60.5*29.5*42.5cm
YB-9 26 1300 53 181 60.5*29.5*43.5cm

* Fluorescent black light is optional



Model: YB-10
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-10 11 550 48 130 54.5*27.5*33.5cm
YB-10 13 650 48 140 54.5*27.5*35.5cm
YB-10 15 750 48 149 54.5*27.5*37.5cm
YB-10 18 900 48 155 54.5*27.5*38.5cm
YB-10 20 1000 48 160 54.5*27.5*39.5cm
YB-10 22 1100 48 165 54.5*27.5*40.5cm
YB-10 24 1200 48 170 54.5*27.5*41.5cm
YB-10 26 1300 48 175 54.5*27.5*42.5cm


Model: YB-11
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-11 11 550 59 140 65.5*33.5*35.5cm
YB-11 13 650 59 150 65.5*33.5*37.5cm
YB-11 15 750 59 159 65.5*33.5*39.5cm
YB-11 18 900 59 165 65.5*33.5*40.5cm
YB-11 20 1000 59 170 65.5*33.5*41.5cm
YB-11 22 1100 59 175 65.5*33.5*42.5cm
YB-11 24 1200 59 180 65.5*33.5*43.5cm
YB-11 26 1300 59 185 65.5*33.5*44.5cm


Model: YB-12
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-12 11 550 54 134 60.5*30.5*33cm
YB-12 13 650 54 144 60.5*30.5*35cm
YB-12 15 750 54 153 60.5*30.5*37cm
YB-12 18 900 54 159 60.5*30.5*39cm
YB-12 20 1000 54 164 60.5*30.5*40cm
YB-12 22 1100 54 169 60.5*30.5*41cm
YB-12 24 1200 54 174 60.5*30.5*42cm
YB-12 26 1300 54 179 60.5*30.5*43cm


Model: YB-13
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-13 11 550 44 126 50.5*25.5*32.5cm
YB-13 13 650 44 136 50.5*25.5*34.5cm
YB-13 15 750 44 145 50.5*25.5*36.5cm
YB-13 18 900 44 151 50.5*25.5*38.5cm
YB-13 20 1000 44 156 50.5*25.5*39.5cm
YB-13 22 1100 44 161 50.5*25.5*40.5cm
YB-13 24 1200 44 166 50.5*25.5*41.5cm
YB-13 26 1300 44 177 50.5*25.5*42.5cm


Model: YB-14
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-14 5 250 42 106 48.5*24.5*28.5cm
YB-14 7 350 42 111 48.5*24.5*29.5cm
YB-14 9 450 42 121 48.5*24.5*31.5cm
YB-14 11 550 42 126 48.5*24.5*32.5cm
YB-14 13 650 42 131 48.5*24.5*33.5cm
YB-14 15 750 42 136 48.5*24.5*34.5cm

* Slim 3U compact fluorescent lamp and mini 3U energy saving bulb

Model: YB-15
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-15 13 650 54 145 60.5*30.5*36.5cm
YB-15 15 750 54 155 60.5*30.5*38.5cm
YB-15 18 900 54 160 60.5*30.5*39.5cm
YB-15 20 1000 54 165 60.5*30.5*40.5cm
YB-15 22 1100 54 170 60.5*30.5*41.5cm
YB-15 24 1200 54 175 60.5*30.5*42.5cm
YB-15 26 1300 54 180 60.5*30.5*43.5cm


Model: YB-15-1
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-15-1 5 275 38 90 20.5*20.5*11cm
YB-15-1 7 385 38 92 20.5*20.5*11cm
YB-15-1 9 495 38 100 20.5*20.5*12cm
YB-15-1 11 605 38 110 20.5*20.5*13cm


Model: YB-41
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-41 5 250 46 119 52.5*26.5*31.5cm
YB-41 7 350 46 124 52.5*26.5*32.5cm
YB-41 9 450 46 134 52.5*26.5*34.5cm
YB-41 11 550 46 139 52.5*26.5*35.5cm
YB-41 13 650 46 144 52.5*26.5*36.5cm
YB-41 15 750 46 149 52.5*26.5*37.5cm

* Slim 3U energy saving lamp and mini 3U compact fluorescent lamp

Model: YB-43
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-43 11 550 52 134 58.5*29.5*34.5cm
YB-43 13 650 52 144 58.5*29.5*36.5cm
YB-43 15 750 52 153 58.5*29.5*38.5cm
YB-43 18 900 52 159 58.5*29.5*39.5cm
YB-43 20 1000 52 164 58.5*29.5*40.5cm
YB-43 22 1100 52 169 58.5*29.5*41.5cm
YB-43 24 1200 52 174 58.5*29.5*42.5cm
YB-43 26 1300 52 179 58.5*29.5*43.5cm


Model: YB- 51

Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-51 11 550 58 143 64.5*32.5*35.5cm
YB-51 13 650 58 153 64.5*32.5*37.5cm
YB-51 15 750 58 162 64.5*32.5*39.5cm
YB-51 18 900 58 168 64.5*32.5*40.5cm
YB-51 20 1000 58 173 64.5*32.5*41.5cm
YB-51 22 1100 58 178 64.5*32.5*42.5cm
YB-51 24 1200 58 183 64.5*32.5*43.5cm
YB-51 26 1300 58 188 64.5*32.5*44.5cm


Model: YB- 76

Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E27



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-76 13 650 48 142 52*26.5*36cm
YB-76 15 750 48 147 52*26.5*37.5cm
YB-76 18 900 48 157 52*26.5*36cm
YB-76 20 1000 48 162 52*26.5*39cm
YB-76 22 1100 48 167 52*26.5*39cm
YB-76 24 1200 48 172 52*26.5*39cm


YB-SENSE LAMP

Voltage: 100V-120V,220V-240V
Frequency: 60HZ/50HZ
Lamp holder: E14, E27, B22
Plastic lamp tube with various kinds
Good anti-disturbance, good light control consistency
Life: 6000 H
Color temperature: 2700K, 4000K, 6400K




Model Wattage
(W)		 Size(MM)
d l		 Quantity/box Carton meas.
YB-SENSE LAMP 9 42 120 100 450x235x300
YB-SENSE LAMP 11 42 125 100 450x235x300
YB-SENSE LAMP 13 42 130 100 450x235x320
YB-SENSE LAMP 15 42 135 100 450x235x320
