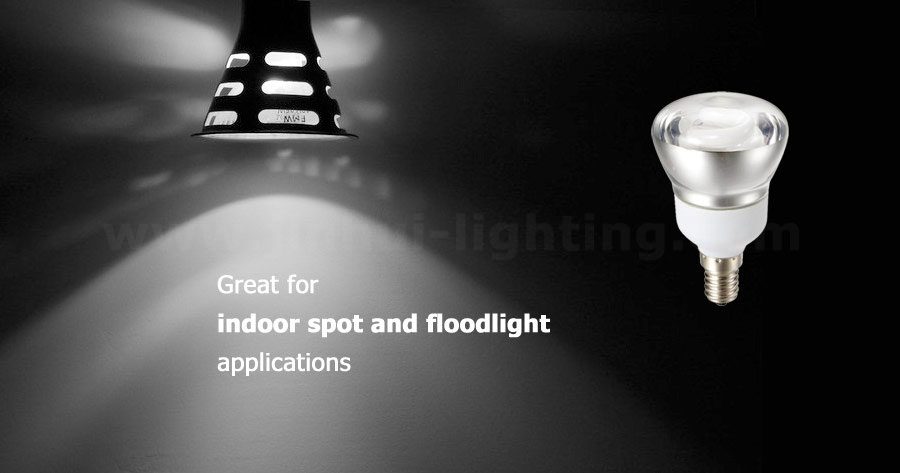

Reflector Compact Fluorescent Bulb


All the benefits of compact fluorescent bulb in a reflector bulb.

Great for indoor spot and floodligh applications, especially hard-to reach ceiling fixtures.




Model: YB-25
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E14, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 C
(mm)		 A
(mm)		 Length
(mm)		 Carton meas.
(cm/ pcs)
YB-25 3 150 50 37 93 56.5*28.5*25cm/100
YB-25 5 250 50 37 105 56.5*28.5*27cm/100
YB-25 7 350 63 37 108 69.5*35*29cm/100
YB-25 9 450 80 42 124 43.5*43.5*31cm/50
YB-25 11 550 80 42 124 43.5*43.5*31cm/50
YB-25 13 650 80 42 133 43.5*43.5*33cm/50
YB-25 15 750 95 57 133 51*41*16.5cm/20
YB-25 20 1000 95 57 133 51*41*16.5cm/20

* * E14 and B15 is just available for 3W and 5W.
* * 100pcs/carton for 3W and 5W.


Model: YB-47
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27



Model Wattage
(W)		 Luminous
Flux(lm)		 C
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-47 15 750 120 175 63.5*51*21cm
YB-47 20 1000 120 175 63.5*51*21cm
YB-47 25 1250 120 175 63.5*51*21cm

* * E14 and B15 is just available for 3W and 5W.
* * 100pcs/carton for 3W and 5W.


Model: YB-63-AL
Name:
Lamp Cover
Base Type:
E26, B22, E27





Model Wattage
(W)		 A
(mm)		 C
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-63   70 200 180



Model: MR-16
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:





Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
MR-16 11 450 50 45 40*29.5*20cm


Model: YB-66-1
Supply Voltage:
100-240V/50-60Hz
Color Temperature:

Base Type:





Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-66-1 18*1   47 90 49.5*28*22.5cm
YB-66-1 40*1   47 90 49.5*28*22.5cm


Model: YB-66-2
Supply Voltage:
100-240V/50-60Hz
Color Temperature:

Base Type:





Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-66-2 18*2   47 141 55*30.5*27.5cm
YB-66-2 40*2   47 141 55*30.5*27.5cm


Model: YB-67
Supply Voltage:
100-240V/50-60Hz
Color Temperature:

Base Type:





Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-67 9   41 81 40*29.5*37cm
YB-67 11   41 81 40*29.5*37cm


Model: YB-25-L

Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E14



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-25-L 5 250 36 87 56*28.5*23cm
YB-25-L 7 350 36 91 56*28.5*23cm
