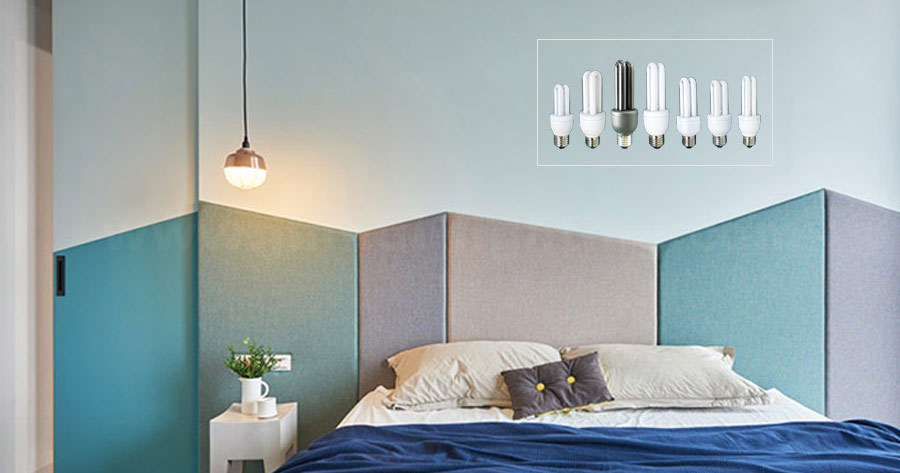

2U Compact Fluorescent Bulb


The 2U compact fluorescent bulb consists of a high performance electronic ballast and a 2U shaped trichromatic fluorescent lamp. The whole unit is compact and simple in construction and highly effective in light emitting, with soft light, excellent chromaticness and low heat-emission. Moreover, it can be instantly started even at a comparatively low temperature or voltage.


Model: YB-1 (2U Black Compact Fluorescent Bulb )

Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K or Black
Base Type:
E27, B22, E14
Tube Color :
Purple & White



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-1 5 250 46 125 52.5*26.5*32.5cm
YB-1 7 350 46 135 52.5*26.5*34.5cm
YB-1 9 450 46 145 52.5*26.5*36.5cm
YB-1 11 550 46 155 52.5*26.5*38.5cm
YB-1 13 650 46 165 52.5*26.5*40.5cm
YB-1 15 750 46 175 52.5*26.5*42.5cm
YB-1 18 900 46 190 52.5*26.5*45.5cm
YB-1 20 1000 46 200 52.5*26.5*47.5cm

* Fluorescent black light is optional



Model: YB-2
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E27, B22, E14

2U Energy Saving Lamp

Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-2 5 250 45 120 51.5*26*31.5cm
YB-2 7 350 45 130 51.5*26*33.5cm
YB-2 9 450 45 140 51.5*26*35.5cm
YB-2 11 550 45 150 51.5*26*37.5cm
YB-2 13 650 45 160 51.5*26*39.5cm
YB-2 15 750 45 170 51.5*26*42.5cm
YB-2 18 900 45 185 51.5*26*44.5cm
YB-2 20 1000 45 195 51.5*26*46.5cm


Model: YB-3
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E27, B22, E14

2U Energy Saving Lamp




Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-3 5 250 42 118 48.5*24.5*30.5cm
YB-3 7 350 42 128 48.5*24.5*32.5cm
YB-3 9 450 42 138 48.5*24.5*34.5cm
YB-3 11 550 42 148 48.5*24.5*36.5cm
YB-3 13 650 42 158 48.5*24.5*38.5cm
YB-3 15 750 42 168 48.5*24.5*41.5cm
YB-3 18 900 42 182 48.5*24.5*43.5cm
YB-3 20 1000 42 193 48.5*24.5*45.5cm


Model: YB-4
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E27, B22, E14

2U Energy Saving Lamp



Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-4 5 250 42 114 48.5*24.5*30.5cm
YB-4 7 350 42 124 48.5*24.5*32.5cm
YB-4 9 450 42 134 48.5*24.5*34.5cm
YB-4 11 550 42 144 48.5*24.5*36.5cm
YB-4 13 650 42 154 48.5*24.5*38.5cm
YB-4 15 750 42 164 48.5*24.5*40.5cm
YB-4 18 900 42 178 48.5*24.5*42.5cm
YB-4 20 1000 42 190 48.5*24.5*45.5cm


Model: YB-5
Supply Voltage:
DC12V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E27, B22, E14

2U Energy Saving Lamp


Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-5 5 250 53 130 61.5*31*33.5cm
YB-5 7 350 53 140 61.5*31*35.5cm
YB-5 9 450 53 150 61.5*31*37.5cm
YB-5 11 550 53 160 61.5*31*39.5cm
YB-5 13 650 53 170 61.5*31*41.5cm


Model: YB-7
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E27, B22, E14

2U Energy Saving Lamp


Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-7 5 250 38 113 44.5*22.5*29cm
YB-7 7 350 38 123 44.5*22.5*31cm
YB-7 9 450 38 133 44.5*22.5*33cm
YB-7 11 550 38 143 44.5*22.5*35cm
YB-7 13 650 38 153 44.5*22.5*37cm
YB-7 15 750 38 163 44.5*22.5*39cm


Model: YB-42
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E27, B22, E26

2U Energy Saving Lamp


Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-42 5 250 44 116 50.5*25.5*30.5cm
YB-42 7 350 44 126 50.5*25.5*32.5cm
YB-42 9 450 44 126 50.5*25.5*34.5cm
YB-42 11 550 44 146 50.5*25.5*36.5cm
YB-42 13 650 44 156 50.5*25.5*38.5cm
YB-42 15 750 44 166 50.5*25.5*40.5cm
YB-42 18 900 44 181 50.5*25.5*43.5cm
YB-42 20 1000 44 190 50.5*25.5*45.5cm


Model: YB-50
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E27, B22, E26

Slim 2U compact fluorescent bulb and mini 2U energy saving lamp


Model Wattage
(W)		 Luminous
Flux(lm)		 Diameter
(mm)		 Length
(mm)		 Carton meas.
(100 pcs)
YB-50 3 150 38 100 43.5*22*27.5cm
YB-50 5 250 38 110 43.5*22*29.5cm
YB-50 7 350 38 117 43.5*22*30.5cm
YB-50 9 450 38 122 43.5*22*31.5cm
YB-50 11 550 38 125 43.5*22*32.5cm

* Slim 2U compact fluorescent lamp and mini 2U energy saving lamp
