Ring compact fluorescent bulbs generate their light on the same principle as fluorescent lamps. An electrical charge is passed through mercury vapour ....

Search Insite
Powered by Google


Copyright © Jinhui 2004
Designed by Chinapromoter

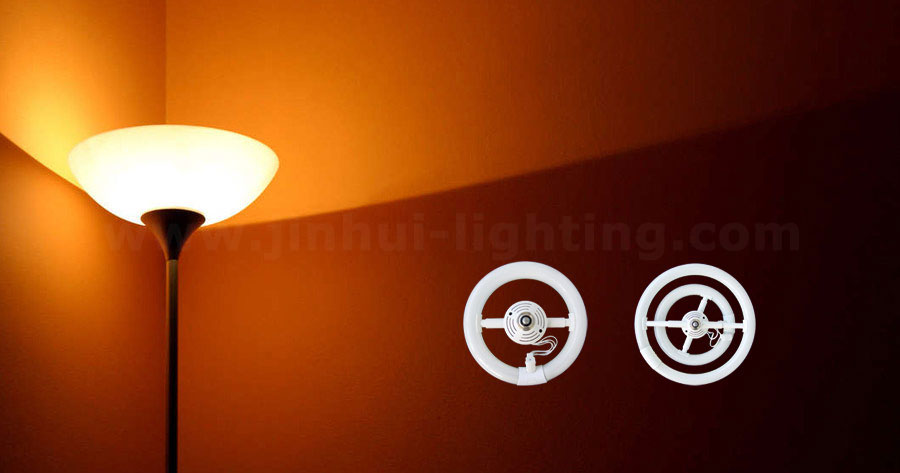

Ring Compact Fluorescent Bulb


With an electronic ballast, the circle or ring compact fluorescent bulb combines high light output with long life to offer dramatic energy savings.


Model: YB-36
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Diameter:
67mm
Base Type:
E27, B22, E26



Model Wattage
(W)		 Luminous
Flux(lm)		 C
(mm)		 Length
(mm)		 Carton Meas.
(20/10 pcs)
YB-36 22 900 205 65 55*50.5*33.5cm
YB-36 32 1100 302 65 60*41.5*39m


Model: YB-37
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Diameter:
70mm
Base Type:
E26, B22, E27
Tube Type:
Single Ring & Double Ring



Model Wattage
(W)		 Luminous
Flux(lm)		 C
(mm)		 Length
(mm)		 Carton Meas.
(10 pcs)
YB-37 22 990 212 100 53.5*44.5*24.5cm
YB-37 32 1440 302 100 62.5*53.5*33.5cm
YB-37 54 2000 C1212 100 62.5*53.5*33.5cm
YB-37 54 2000 C2302 100 62.5*53.5*33.5cm


Model: YB-56 (T5 Tube)

Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
B22, E27
Tube Type:
Slim Ø17mm



Model Wattage
(W)		 Luminous
Flux(lm)		 C
(mm)		 Length
(mm)		 Carton meas.
(cm/ pcs)
YB-56 22 1100 187 75 40*34.5*22/20


Model: YB-56 (T9 Tube)

Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
B22, E27
Tube Type:
Normal Ø29mm



Model Wattage
(W)		 Luminous
Flux(lm)		 C
(mm)		 Length
(mm)		 Carton meas.
(cm/ pcs)
YB-56 32 1600 305 80 39*31.5*34/10
