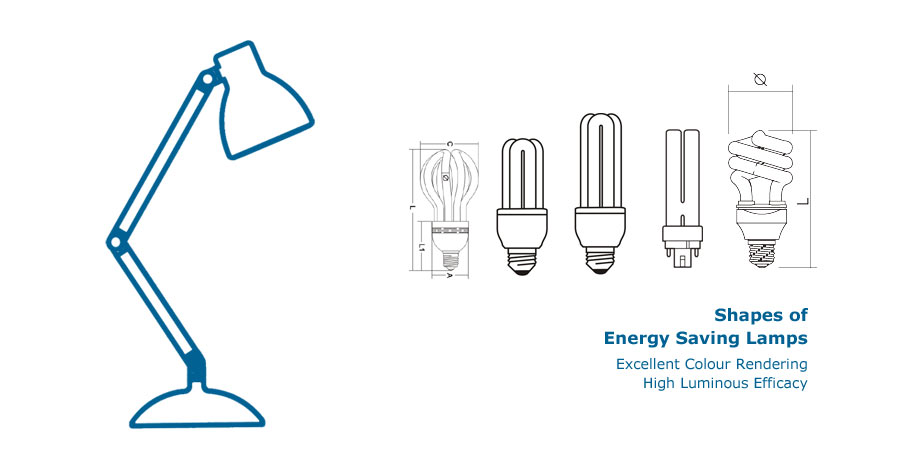

Shape Of Energy Saving Lamp
The 2U series of energy saving lamp consist of a high performance electronic ballast and a 2U shaped trichromatic fluorescent lamp. The whole unit is compact and simple in construction and highly effective in light emitting, with soft light, excellent chromaticness and low heat-emission. Moreover, it can be instantly started even at a comparatively low temperature or voltage.
The 3U series of compact fluorescent bulb consist of a high performance electronic ballast and a 3U shaped trichromatic fluorescent lamp. The whole unit is compact and simple in construction and highly effective in light emitting, with soft light, excellent chromaticness and low heat-emission. Moreover, it can be instantly started even at a comparatively low temperature or voltage.
The 4U series of energy saving bulb consist of a high performance electronic ballast and a 4U shaped trichromatic fluorescent lamp. The whole unit is compact and simple in construction and highly effective in light emitting, with soft light, excellent chromaticness and low heat-emission. Moreover, it can be instantly started even at a comparatively low temperature or voltage.
The spiral lamp provides performance like incandescent bulb with less energy consumption. Amalgam technology for stable lumen output over broad temperature range.
The unique shape, which uses design space optimally, results in a shorter overall length than other compact fluorescent lamps.The helical geometry minimizes light trapping, providing a more optically efficient lamp.
The global series of compact fluorescent light bulb is equipped with a diffusely scattering glass spherical l cover.
The global series provide good light distribution, soft and flattering, yet bright enough for applying writing, reading and so on.
The column series of energy saving lamp is equipped with a diffusely scattering glass cylindrical cover giving off soft and uniform light.
The room can be made more inviting, comfortable and functional when you choose the styles of the lamp.
The candle series of compact fluorescent lamp is equipped with a diffusely scattering glass candle cover. It looks more attractive and is suitable for all living rooms, especially where decoration lighting is needed.
The performance is same with the standard energy saving lamp.
The circle series (ring) of energy saving lamp with an electronic ballast combines high light output with long life to offer dramatic energy savings.
The bulb series of energy saving lamp provides performance as same as standard energy saving lamp, which just equipped with a diffusely scattering glass bulb cover (it's shape looks like a incandescent bulb). The bulb series can give off soft and uniform light, also can make a more comfortable lighting space.
The reflector bulb have all the benefits of energy saving lamp in .
Great for indoor spot and floodligh applications, especially hard-to reach ceiling fixtures.
The electronic ballast makes the lamp tube to be separated from the socket base. Once the lamp tube is found in failure, replacement is quick and easy by any lamp tubes as indicated at the packing. This makes the best in the environmental and economic considerations without total disposal of the lamp. Also, the lamp tubes can be available from many countries.
