LED Linkable Track Linear Lamps

15W-225W 3000-6000K LED Linkable Track Linear Lamps

Jinhui wholesales LED Linkable Track Linear Lamps from China, Just 200 pieces get wholesale price, right now.

The LED linear lighting system is an energy-efficient , low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications.

It is the optimal solution for conventional lighting systems and also excellent for new installations. Due to it's low installation cost, everything in one box and installtion is tool-less. It saves both time and costs when installing lighting systems. Also the LED linear lighting system is really good in terms of the low mantenance. That's typical for LED lighting and this also keep costs low.

A continuous-row LED lighting system could be created only by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other.

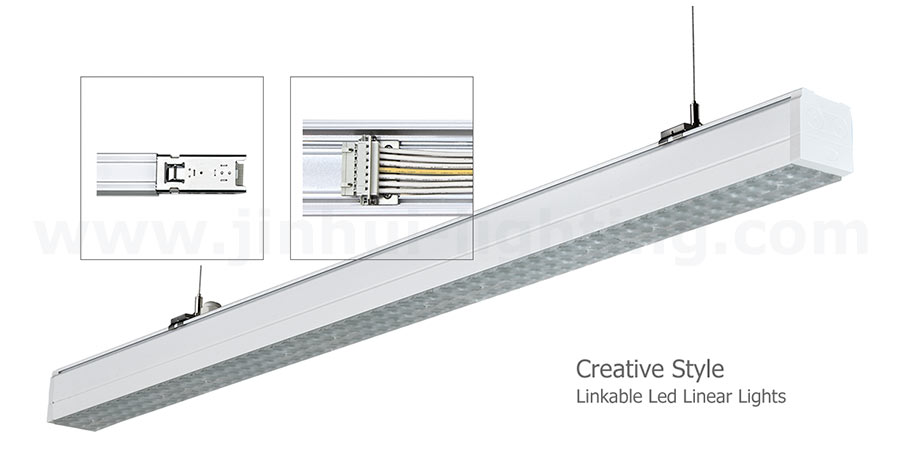

picture (image) of led-linkable-track-linear-lamps.jpg

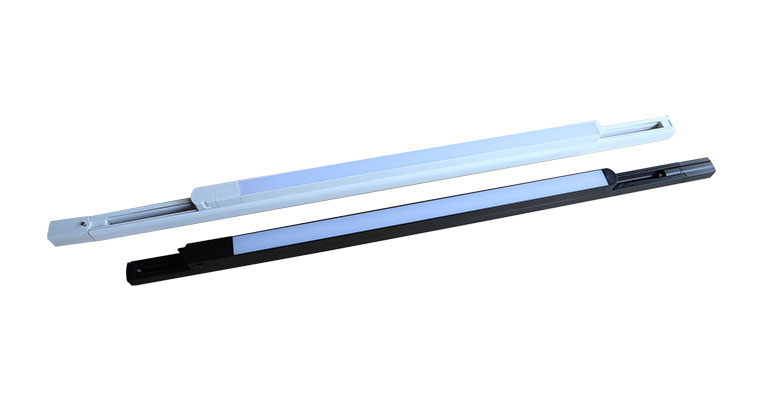

Item: YB-T3 Series
Product Name: 15W-30W 3 Wires Track Linear Light

  • Power: 15W-30W (Unit)
  • Rated Voltage: 100-277V
  • Color Temperaturre: 3000k/4000k/5000k/6000k
  • Rendering Index: Ra>80
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric



picture (image) of yb-t3-series.jpg

Features of LEDs

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where require high accuracy of color, such as in museum, jewelry store, pring factory and so on. CRI 95 linear series is highly recommended.





Technical Data

Item Wattage
(W)
Luminous
Flux(lm)
LED
(qty/type)
Size
(LxH mm)
Carton Meas.
(50 pcs)
Options
YB T3060 15 2000 75 600x20 610x20x20 cm White
Gray
Black
YB T3100 28 3600 140 100x20 105x20x20 cm
YB T3120 30 3900 150 120x20 125x20x20 cm

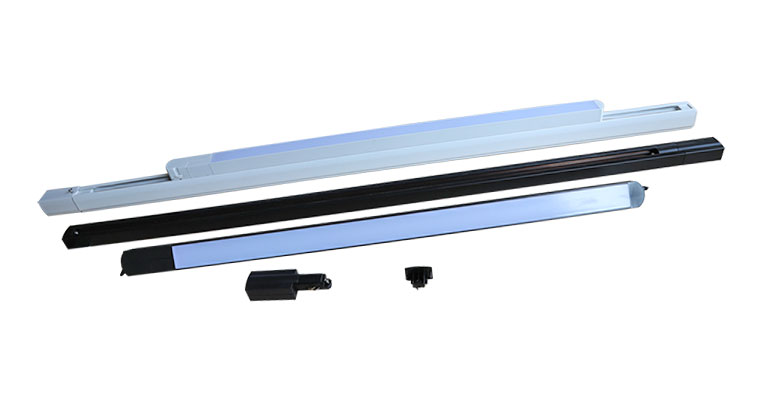

Item: YB-T4 Series
Product Name: 15W-30W 4 Wires Track Linear Light

  • Power: 15W-30W (Unit)
  • Rated Voltage: 100-277V
  • Color Temperaturre: 3000k/4000k/5000k/6000k
  • Rendering Index: Ra>80
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric



picture (image) of yb-t4-series.jpg



Features of LEDs

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where require high accuracy of color, such as in museum, jewelry store, pring factory and so on. CRI 95 linear series is highly recommended.





Technical Data

Item Wattage
(W)
Luminous
Flux(lm)
LED
(qty/type)
Size
(LxH mm)
Carton Meas.
(50 pcs)
Options
YB T4060 15 2000 75 600x20 610x20x20 cm White
Gray
Black
YB T4100 28 3600 140 100x20 105x20x20 cm
YB T4120 30 3900 150 120x20 125x20x20 cm






Item: YB01C Series
Product Name: Linkable LED PC Cover Luminaire

  • Power: 32W-225W
  • Rated Voltage: 100-277V
  • Color Temperaturre: 3000k/4000k/5000k/6000k
  • Rendering Index: Ra>80
  • Dimming: NON/1-10V/DALI
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric

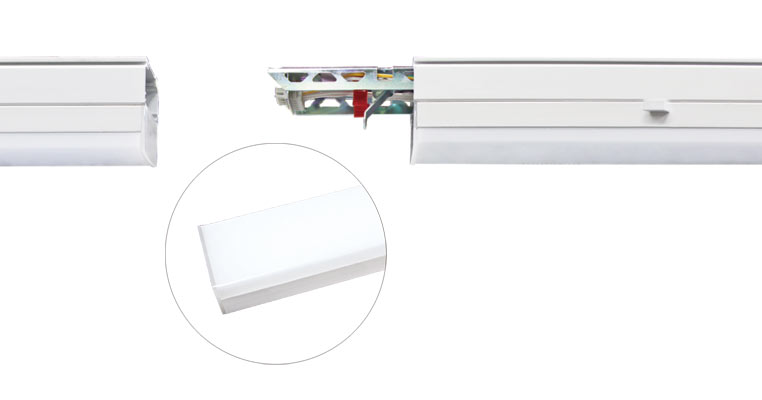

picture (image) of yb01c-pc-cover-luminaire.jpg

Features of LEDs

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where require high accuracy of color, such as in museum, jewelry store, pring factory and so on. CRI 95 linear series is highly recommended.

Technical Data

Item No. Length Power Lumen
YB01C0632 577mm 32W 4160Lm
YB01C1575 1432mm 75W 9750Lm
YB01C30150 2861mm 150W 19500Lm
YB01C45225 4297mm 225W 29250Lm








Item: YB01DOB Series
Product Name: Linkable LED DOB Luminaire

  • Power: 26W-150W
  • Rated Voltage: 100-277V
  • Color Temperaturre: 3000k/4000k/5000k/6000k
  • Rendering Index: Ra>80
  • Dimming: NON/1-10V/DALI
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric

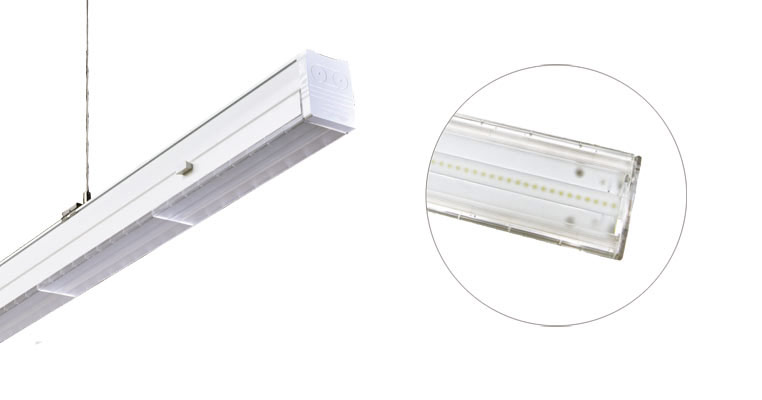

picture (image) of yb01dob-dob-luminaire.jpg



Features of LEDs

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where require high accuracy of color, such as in museum, jewelry store, pring factory and so on. CRI 95 linear series is highly recommended.

Technical Data

Item No. Length Power Lumen
YB01DOB0626 577mm 26W 3380Lm
YB01DOB0632 577mm 32W 4160Lm
YB01DOB0640 577mm 40W 5200Lm
YB01DOB1540 1432mm 40W 5200Lm
YB01DOB1565 1432mm 65W 8450Lm
YB01DOB1575 1432mm 75W 9750Lm
YB01DOB3080 2861mm 80W 10400Lm
YB01DOB30130 2861mm 130W 16900Lm
YB01DOB30150 2861mm 150W 19500Lm

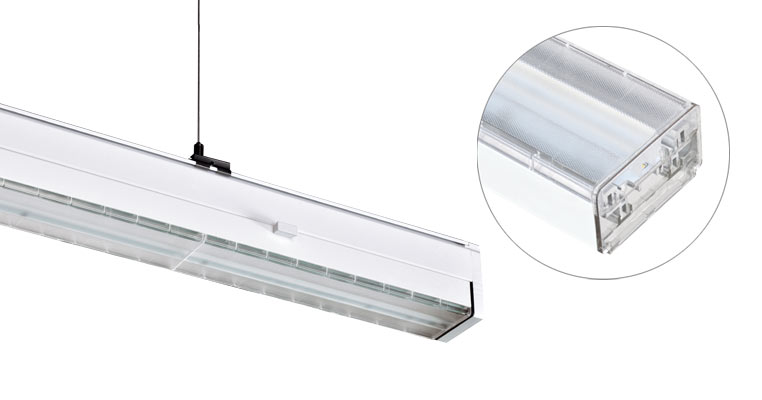

Item: YB01X Series
Product Name: Linkable LED Linear Luminaire

  • Power: 16W-225W
  • Rated Voltage: 100-277V
  • Color Temperaturre: 3000k/4000k/5000k/6000k
  • Rendering Index: Ra>80
  • Dimming: NON/1-10V/DALI
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric




picture (image) of yb01x-linear-luminaire.jpg

Features of LEDs

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where require high accuracy of color, such as in museum, jewelry store, pring factory and so on. CRI 95 linear series is highly recommended.

Technical Data

Item No. Length Power Lumen
YB01X0616 577mm 16W 2080Lm
YB01X0624 577mm 24W 3120Lm
YB01X0632 577mm 32W 4160Lm
YB01X1540 1432mm 40W 5200Lm
YB01X1565 1432mm 65W 8450Lm
YB01X1575 1432mm 75W 9750Lm
YB01X3080 2861mm 80W 10400Lm
YB01X30130 2861mm 130W 16900Lm
YB01X30150 2861mm 150W 19500Lm
YB01X45120 4297mm 120W 15600Lm
YB01X45195 4297mm 195W 25350Lm
YB01X45225 4297mm 225W 29250Lm






Item: YB01Z Series
Product Name: Linkable LED ArrayLuminaire

  • Power: 32W-225W
  • Rated Voltage: 100-277V
  • Color Temperaturre: 3000k/4000k/5000k/6000k
  • Rendering Index: Ra>80
  • Dimming: NON/1-10V/DALI
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric

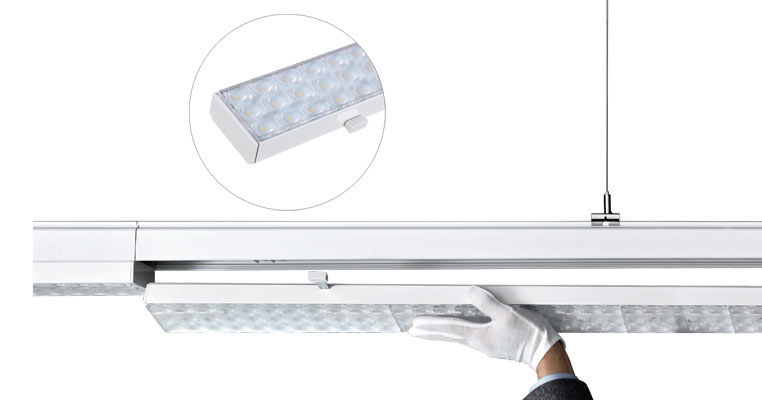

picture (image) of yb01z-array-luminaire.jpg



Features of LEDs

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where require high accuracy of color, such as in museum, jewelry store, pring factory and so on. CRI 95 linear series is highly recommended.

Technical Data

Item No. Length Power Lumen
YB01Z0632 577mm 32W 4160Lm
YB01Z1575 1432mm 75W 9750Lm
YB01Z30150 2861mm 150W 19500Lm
YB01Z45225 4297mm 225W 29250Lm






LED Linear Lighting System

The LED linear lighting system is an energy-efficient , low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations. Due to it's low installation cost, everything in one box and installtion is tool-less. It saves both time and costs when installing lighting systems. Also the LED linear lighting system is really good in terms of the low mantenance. That's typical for LED lighting and this also keep costs low.

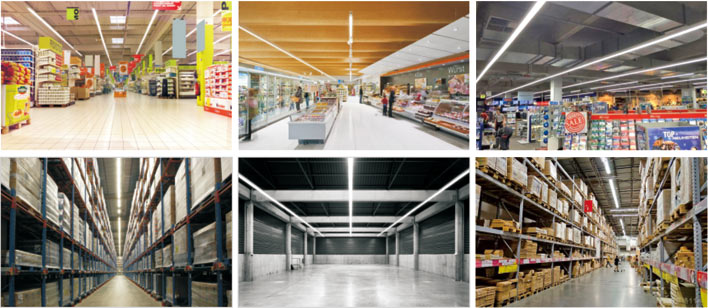

Application

  • Warehouse
  • Supermarket
  • Underground parking garages
  • Wet indoor area
  • Production workshop

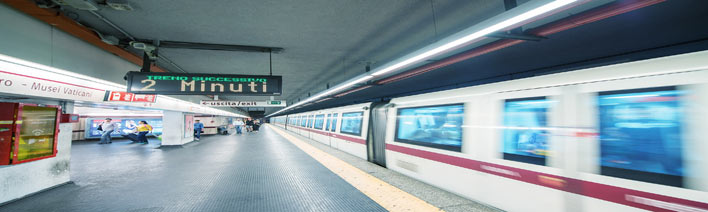

  • Railway station
  • Museum
  • Laboratories
  • And so on

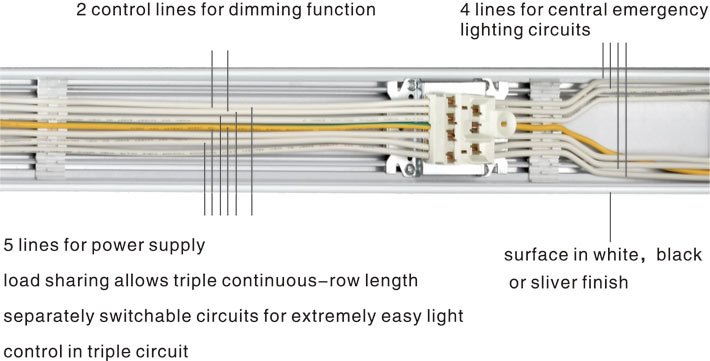

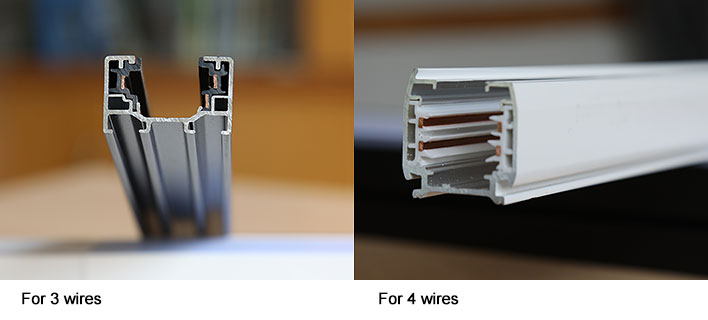

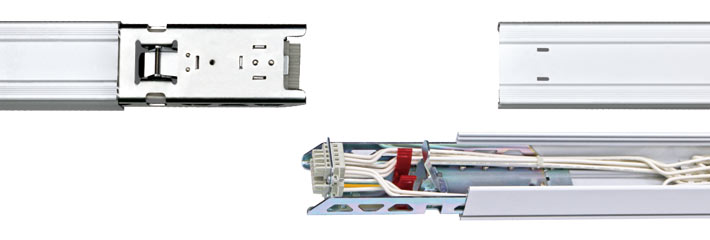

Trunking Rail

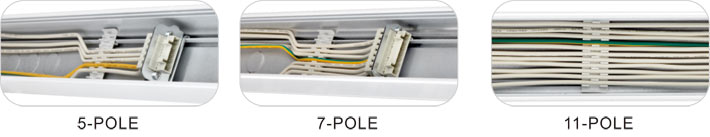

The flexible trunking system for lighting demands in all application, with full compatible modular kit, it adapts individually to complex lightingtasks. It has an 11-pole current conducting section built into its trunking. This means that the system comes ready equipped to meet tomorrow's needs. ll functions such as power suply, lighting control and connection to emergency lighting are seamlessly integrated into this multifunctional trunking. Luminaires can be positioned flexibly and the system can be adapted to suit structural alterations at any time.

The trunking rail is simply a matter of replacing or adding lighting modulars, light sources or optics as required.



  • A pre-wired 3-phases & 2.5 mm power suply.
  • Phase conversion function with connector.
  • Allow Max 16A and 200 meters trunking length in 3-phases power supply system.
  • Endless combination with diversified modulars.
  • Tool-free installation
  • Node connectors enable system to be connected in different directions.
  • Dimming, self-battery emergency or central emergency function as options.
  • Support surface ceiling mounting and suspension.






  • 3 wires.
  • Endless combination with diversified modulars.
  • Tool-free installation
  • Node connectors enable system to be connected in different directions.

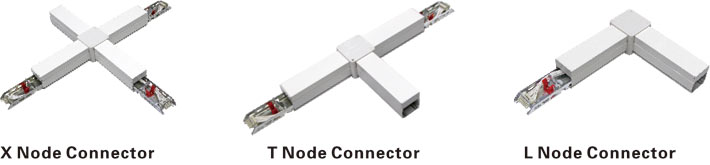

Node Connector

All system components can be combined without tools. L, T and X connectors expand the system's application range.





  • Each node connector has diverse of electrical feed-in and feed-out.
  • The node connector is not only to connection the cross trunking, but also to connect the wire inside the trunking. And the node connector itself could even be the electricity feed-in point.

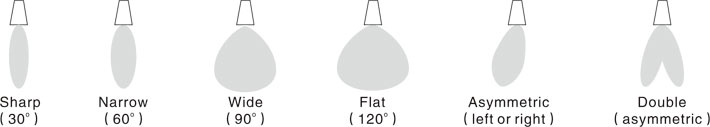

Beam Angle

Different diffuser for different distribution.



Optics

A wide range of optics from sharp to wid distribution, as well as asymmetric.

  • Sharp distribution: 30 degree
  • Narrow distribution: 60 degree
  • Wide distribution: 90 degree
  • Flat distribution: 120 degree
  • Asymmetric distribution: left or right
  • Double asymmetric distribution: asymmetric



DALI and Dimming System

Efficient tools for lighting are the basis for solution with low operating overheads and high quality of light. Supplemented with suitable light control savings potential can be further significantly increased. The right type of light management depends decisively on the specific building conditions and usage of the area. With a wide variety of dimming light control systems with suitable sensor technology, and thanks to open, non-proprietary standards, such solutions can be simply integrated into common building management systems.

Dimming system is suitable for complex applications for controlling rooms and storey, for daylight-dependent control and dynamic light control. 3 types of dimming are available:

  • DALI dimming
  • 1-10V dimming
  • DIM switch



Emergency Lighting

Emergency lighting systems ensure optimum lighting and orientation, even in the event of a power failure. General lighting and emergency lighting are combined in a single highly functional, integrative lighting solution.

  • A wide variety of emergency mode ia available.
  • Central battery systems / generator
  • EL1 EN1 & EL2 EN2 makesmode selected.
  • Self contained battery.
  • Under this mode, the luminaires could be 12W or 6W, working for 1.5 hours or 3 hours.(depending on the demand selected in advance)
  • Ni-MH battery we used is high temperature resistant to make sure its life time could be longer than others.

A small spot light is available on 600mm moduleas an extra version featuring a rotating lighting head for emergency use of 5W.

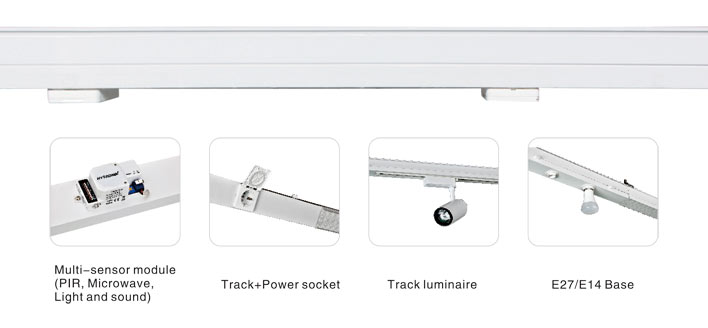

Multi-Sensor System

Multi-sensor system combines energy saving with highly convenience for user. Most energy can be saved by integrating motion and daylight sensor.



  • Group control sensor or broadcast control sensor is available under a defined period of time.
  • Protect against a solid object such as a wire and protected against the ingress dust.
  • Protected against splashing water from any direct.

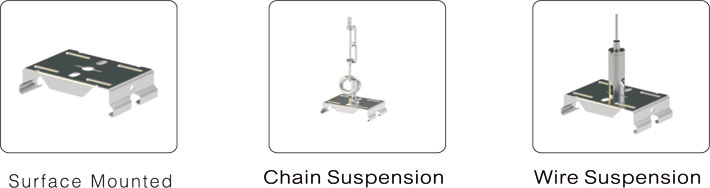

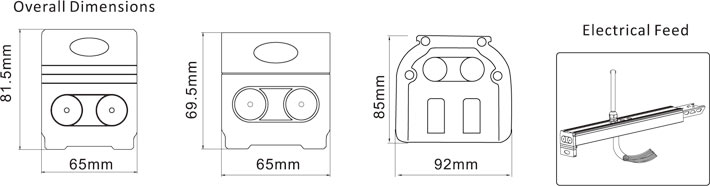

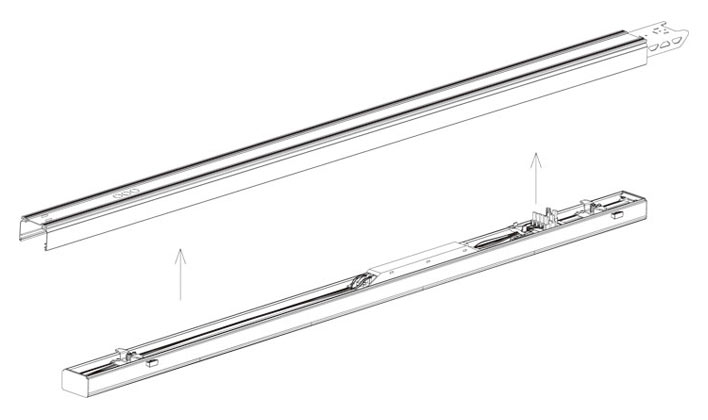

Installation

A maximum suspension span of 3m ensures quick and easy installation with fewer suspension points.

  • Ceiling mounted ,wall mounted and pendant mounted all available.
  • Surface mounted, chain suspension and wire suspension all available.

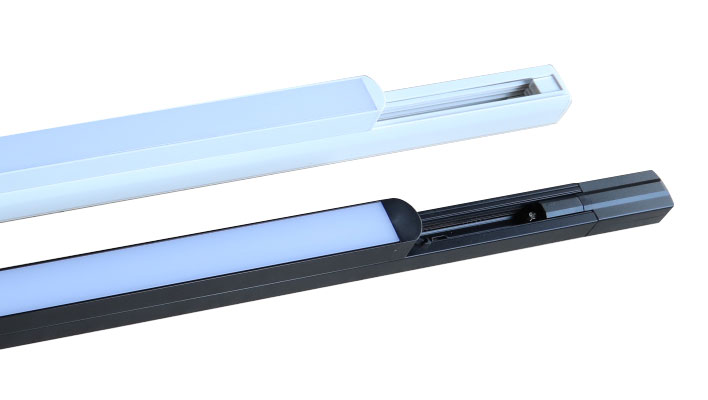

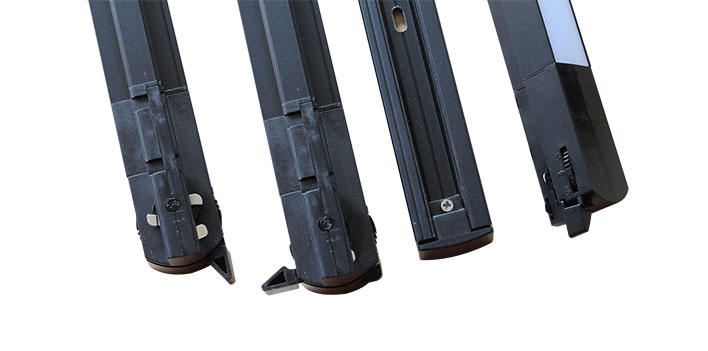

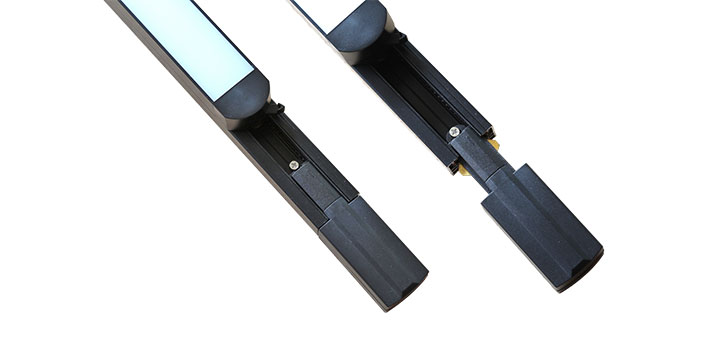

** LED light source and light fixture of YB-T3 Series and YB-T4 Series can be connected simply without tools.
